FTDX1200 Operating Manual Page 13

INSTALLATION AND INTERCONNECTIONS Cont'd
Previous Page    Index of Topics    Table of Contents    Index of Pages    Next Page

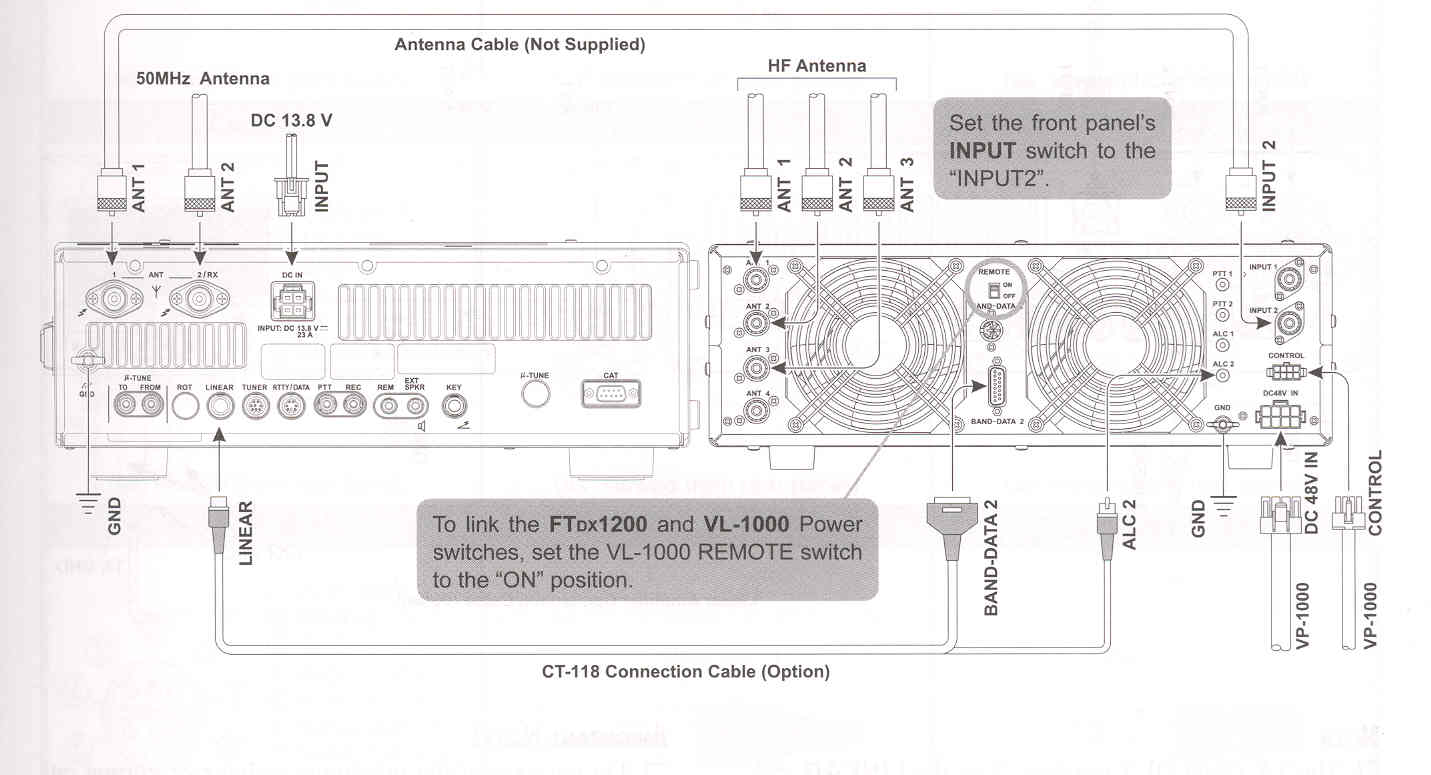

VL-1000 LINEAR AMPLIFIER INTERCONNECTIONS
Be sure that both the FTDX1200 and VL-1000 are turned off, and then follow the installation recommendations contained in the illustration.

NOTE:

Refer to the VL-1000 Operating Manual for details regarding amplifier operation

Do not attempt to connect or disconnect coaxial cables when your hands are wet.

End of "VL-1000 Linear Amplifier Interconnections"
Cont'd Next Page "Installation & Interconnections"
Previous Page    Index of Topics    Table of Contents    Back to Top    Index of Pages    Next Page
Page 13 FTDX1200 Operating Manual
